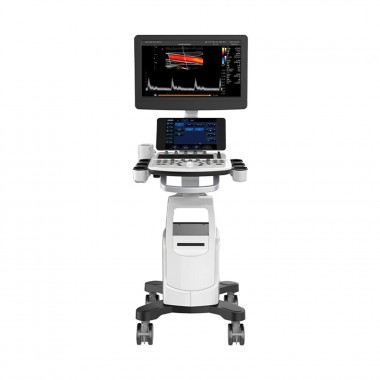

Product InformationCBit6 Ultrasound Machine

The CBit 6 ultrasound machine from Chison is a state-of-the-art color Doppler ultrasound system that delivers superior image quality, ease of use, and advanced functionality. Equipped with a 19-inch HD LED screen that rotates 90°, the CBit 6 delivers exceptionally large and razor-sharp images. The full-screen function ensures that important details are optimally visible, while the dual-screen display supports simultaneous viewing of multiple perspectives, enabling more precise diagnoses.

The ultrasound system boasts a sleek, ergonomic design with a tiltable 10.1-inch touch panel for intuitive operation. Its fast response time and customizable layout mean the system can be perfectly adapted to the user's needs. The four probe connectors allow for flexible use across various applications, streamlining workflows. Innovations like the SonoAI-OB software, powered by artificial intelligence, specifically support gynecological examinations. This technology enables high efficiency and precision in the measurement of parameters such as BPD, HC, FL and NT.

Additionally, the color Doppler ultrasound offers quantitative elastography, which displays tissue elasticity in color-coded images. This technology significantly improves diagnostics for breast, thyroid, liver and prostate examinations. The color Doppler also features the modern echocardiography technique TDI (Tissue Doppler Imaging), allowing for a detailed assessment of myocardial left and right heart function. The Color M Mode supports detailed visualization of blood flow direction and facilitates the detection of regurgitation. The Free Steering M Mode enables precise measurement of cardiac function parameters from various sections and angles, even under challenging examination conditions.

Additional features include Auto IMT for quick and accurate intima thickness measurements, with optional add-ons like a CD-DVD recorder and a gel warmer to enhance functionality. The device is available with or without a battery, with intelligent battery management providing extended runtime. An optional new vaginal probe with an extended sound window of up to 210° is also available.

Product Details

• CBit6 Ultrasound Machine from Chison
• High-quality and powerful color Doppler ultrasound system
• Large 19" HD LED screen (rotates 90°) with integrated speaker
• Full-screen function delivers extra-large images
• Dual-screen display ensures optimal visualization
• Modern design combined with high functionality
• Elegant and tiltable 10.1" touch panel allows for easy operation
• Fast response time and customizable layout
• Alphanumeric keyboard with interactive backlit keys
• Offers users four probe connectors
• Enables a user-friendly workflow
• Automatically determines the focus position according to penetration depth
• Key areas are highlighted with exceptional clarity
• Different user profiles for image settings can be saved
• Operates with innovative SonoAI-OB software
• Artificial intelligence supports gynecological examinations
• High efficiency and precise measurements for BPD, HC, FL, and NT
• Quantitative elastography displays tissue elasticity in colors
• Improves diagnostics in breast, thyroid, liver, and prostate examinations
• Also enhances reliability in the examination of tissue changes
• Operates with modern echocardiography technique TDI
• Allows for differentiation of myocardial function
• For the assessment of myocardial left and right heart function
• Color M supports heart function assessment
• Makes key details of blood flow direction visible
• Facilitates the detection of regurgitation
• Free Steering M Mode allows precise analysis of heart function
• Provides accurate heart measurement parameters for every section and angle
• Quick and easy even under challenging examination conditions
• Auto IMT for quick and precise intima thickness measurements
• Smart HIP facilitates the diagnosis of hip orthoses during pediatric hip scans
• The adjustment of different angles indicates various hip deformities
• HD CZoom provides high image resolution and essential blood flow information
• Particularly advantageous for fetal heart diagnostics
• Virtual Convex provides an extended scan area when using a convex probe
• Improves the assessment of liver and kidney when scanning through the intercostal space
• Equipped with a CD-DVD recorder
• Printer installation possible
• Optional gel warmer adjustable to user preference
• Available with or without a battery
• Extended runtime thanks to intelligent battery management
• New vaginal probe with an extended sound window up to 210° optionally available
• Includes Convex Probe D3C60L and Linear Probe D7L40L

Applications

• Abdominal (Gynecology & Urology)
• Fetal/OB
• Small Parts (Breast, Scrotum, and Thyroid)
• Paediatrics
• Peripheral Vessels
• Musculoskeletal System (Conventional and Superficial)
• Heart (Adults and Children)
• Transvaginal

Imaging Modes

B, B/M, M, 2B, 4B, CFM, 2D Steer, PD, DPD, PW, B/BC, Triplex, Quadplex, CW, Free Steering M, TDI, Color M, Curved Panoramic Imaging, Trapezoidal Imaging, Compound, SRA, Elastography, ECG, Super Needle, 4D, Virtual HD, FHI, AIO

Display Modes

• Quad/Dual Display
• Duplex Mode
• Triplex Mode
• Quadplex Mode

Included Ultrasound Probes

	Convex Probe D3C60L	Linear Probe D7L40L
Application	Abdomen, Obstetrics, Gynaecology, Thorax	Vascular, Small Organs, Nerves, MSK, Paediatrics, Orthopaedics, Thorax
Central Frequency	3.5 MHz	7.5 MHz
Number of Elements	128	128
Contact Area	73 x 16 mm	44 x 11 mm
Operating Modes	B, C, D, M, CPA, DPD	B, C, D, M, CPA, DPD
Radius	60 mm	40 mm
Field of View	69°	3.96 cm
Scan Depth	3.2–36.7 cm	1–14.8 cm

Technical Specifications

Dimensions	Approx. 806 x 5436 x 1470 mm (D x W x H)
Weight	Approx. 51 kg (without probes)
Storage Capacity	500 GB Hard Drive
Image Format	IMAG
Image Export Formats	BMP, JPG, DCM, PNG, TIFF
Connections	6x USB, 1x Ethernet, 1x S-Video, 1x DVI, 1x VGA, 1x Video, 2x Foot Switches, 1x Grounding Pole, 1x L/R Audio, 1x ECG

Product Identification

• Manufacturer: Chison Medical Technologies
• Manufacturer article number: 95-00454-81
• Item no.: 148911
