Biocare Patient Monitor

The product at a glance

• Multiple parameter patient monitor animals
• With visual and acoustic alarms
• With integrated litihum battery
• Available with 12 or 15 inch display

• Available with or without integrated printer

More details

Product Information:

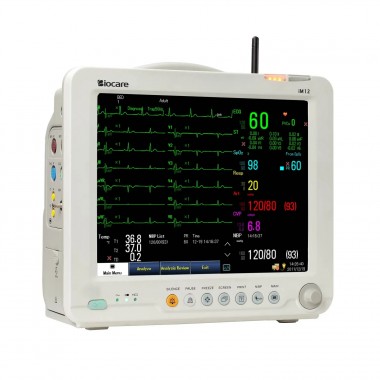

iM 12 VET Patient Monitor

The veterinary patient monitor iM 12 VET from Biocare is suitable for monitoring veterinary patients, e.g. during anaesthesia. The monitor measures ECG, breathing rate, breathwave, temperature, oxygen saturation and pulse rate. Additionally, the patient monitor is equipped with a visual and acoustic alarm function to show both physiological and technical deviations. The alarm function is divided into the three levels "high", "medium" and "low".

To gain an optimal overview, the colours of the curves and the parameters of the clear, 12 inch TFT-LCD display can be adjusted individually. The rechargeable lithium batteries allow for continuous operation, even in case of power failure. If the monitor is connected to an AC power source, the batteries are charged - regardless of whether it is switched on. The patient monitor iM 12 VET is available with or without integrated printer.

Product Details

• Patient monitor iM 12 VET
• To monitor vital signs in animals
• Alarm function included (visual and acoustic)
• Included calculating function
• Curves and parameters of the display can be adjusted in colour
• Continuous use thanks to lithium battery
• Available with or without printer

Parameters

• ECG
• Breathing rate
• Breathwave
• Temperature
• SpO2
• Pulse rate
• NIBP (MAP)
• IBP (optional)
• EtCO2 (sidestream or mainstream) (optional)
• Cardiac output (optional)
• Multi-gas module (optional)

Technical Data

• TFT-LCD display with 12 inches and 800 x 600 pixels
• Power supply: 100-240 v, 50/60 Hz
• Lithium batteries
• Connectors: AC connector, USB, standard RJ45 network connection, VGA, equipotential bonding connection, analogue output (to connect to an oscilloscope), nurse call system interface, defibrillation synchronisation interface
• Monitor weight: 4.5kg
• Monitor dimensions: 310 x 163 x 285mm

Delivery Contents

• Patient monitor iM 12 VET with 12-inch display
• Five metal clamp electrodes
• 5-lead ECG cable
• Earthing cable (4m length)
• SpO2 probe (ear clip)
• SpO2 probe extension
• Three veterinary blood pressure cuffs (sizes: 7-13cm, 10-19cm, and 18-26cm)
• NIBP tube (3m length)
• Temperature probe (rectal)
• Mains connector
• Two lithium batteries

• Three NIBP cuffs

Data Sheets, pls see contact us.

If you have any questions regarding the patient monitor or additional accessories, you can contact our customer service via WhatsApp or email.
